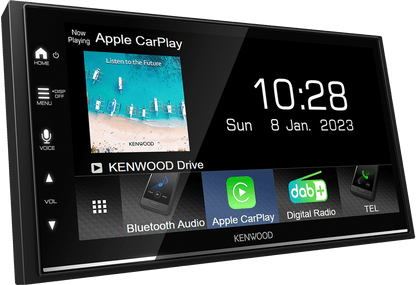

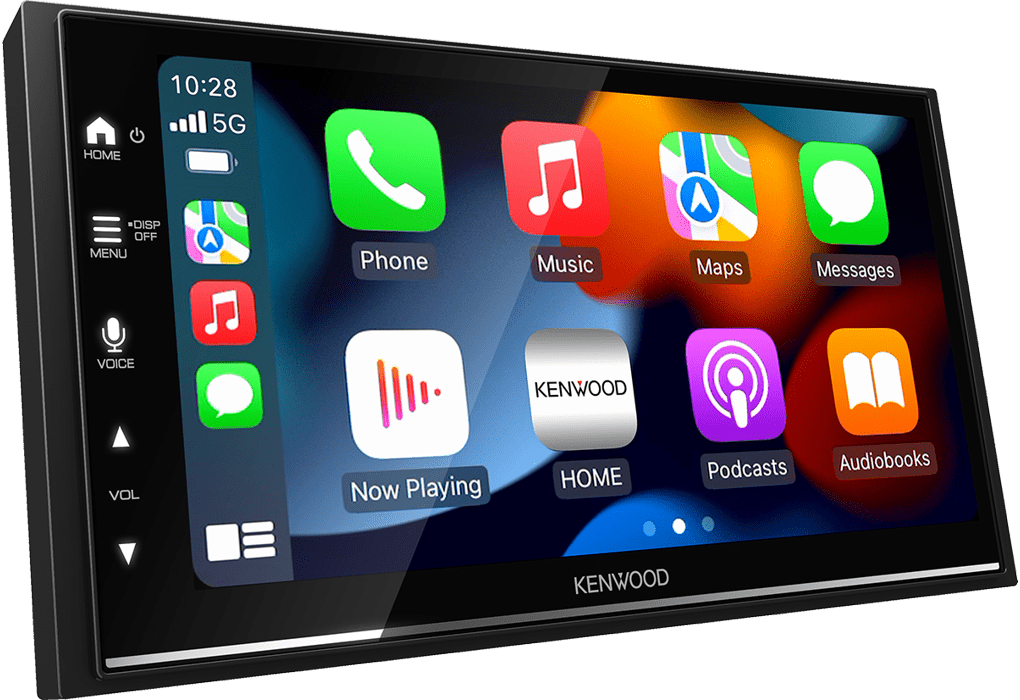

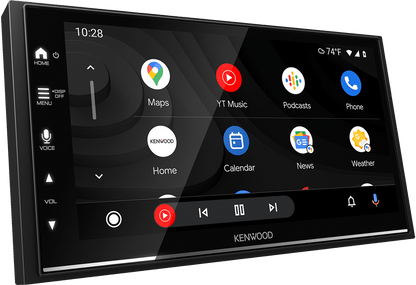

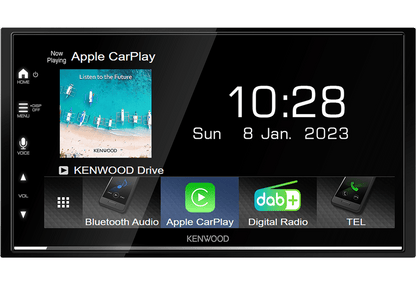

Kenwood DMX7722DABS

Extensive Wireless Smartphone Connection

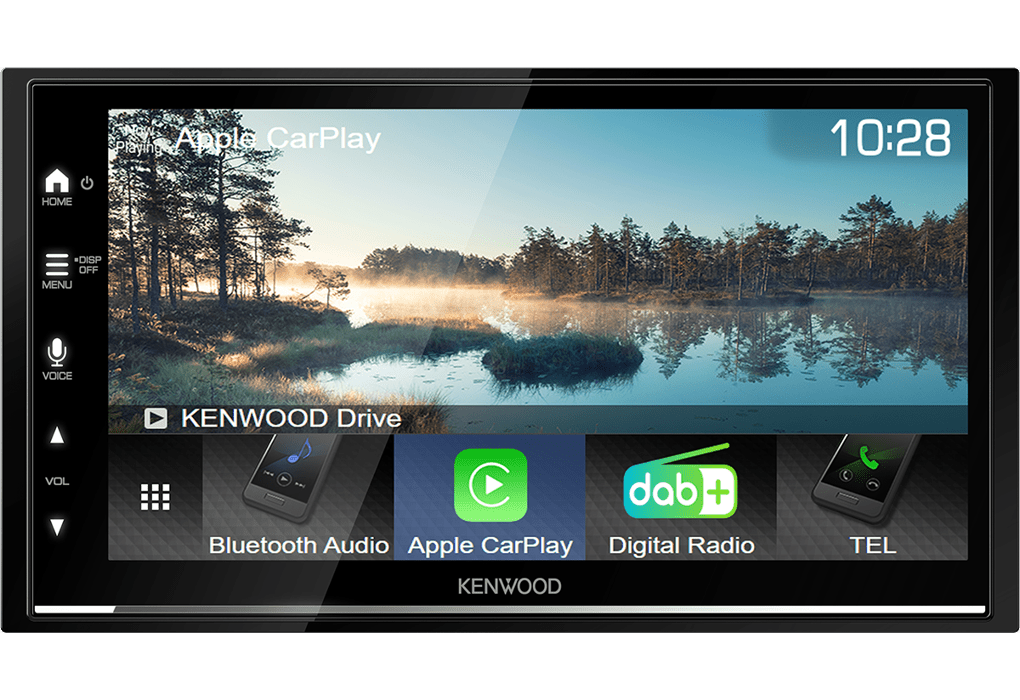

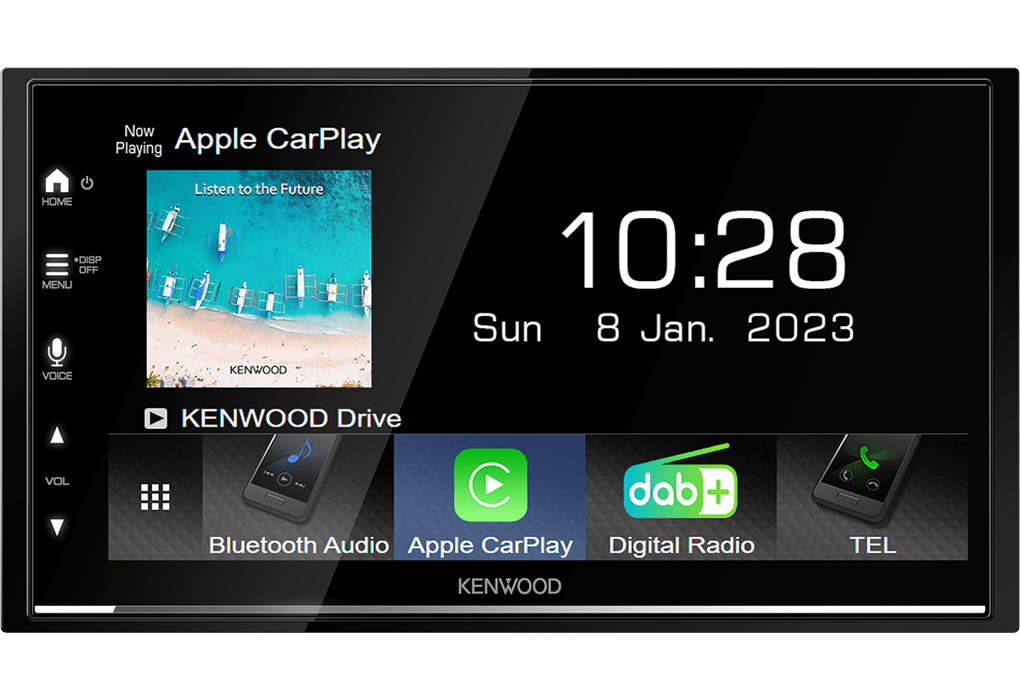

✅ Wireless Apple Carplay

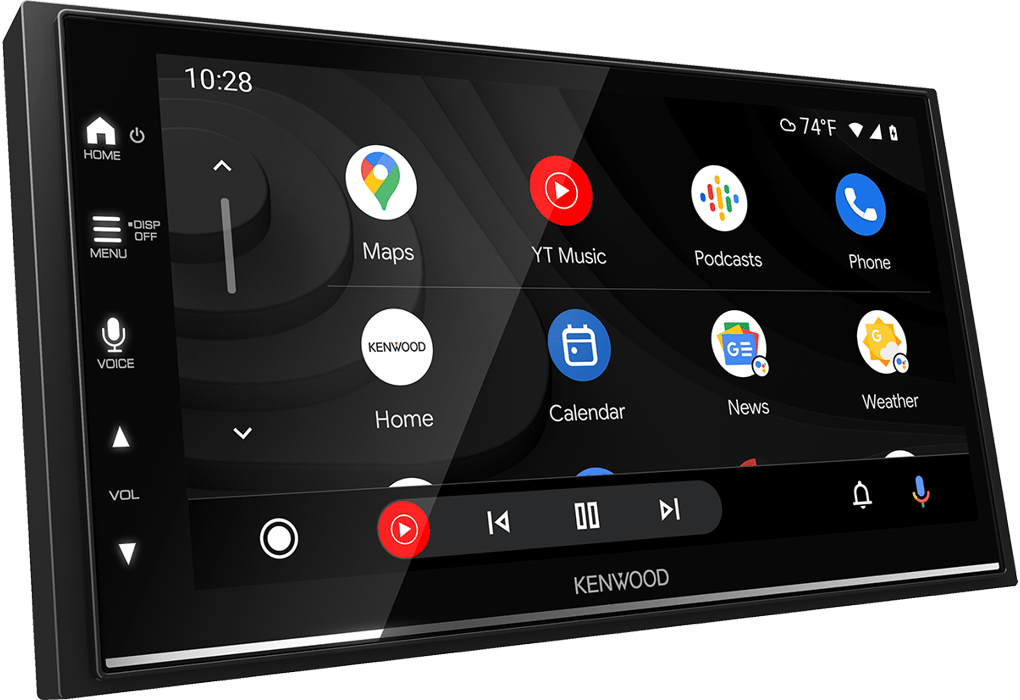

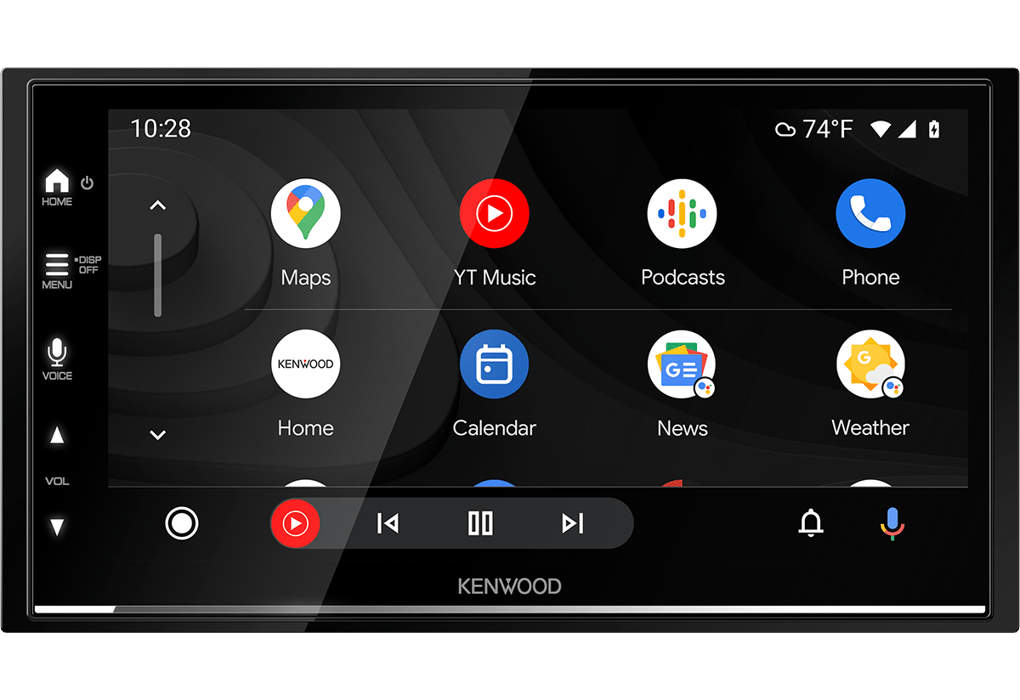

✅ Wireless Android Auto
✅ Bluetooth Calling & Music Streaming
✅ DAB+ Digital Radio Reception
✅ Extensive Audio Settings
✅ 1 Camera Input

Amplifier Properties
- Maximum output power: 4 x 50 Watts
- RMS output power: 4 x 22 Watts
- MOSFET high power IC

Display Properties

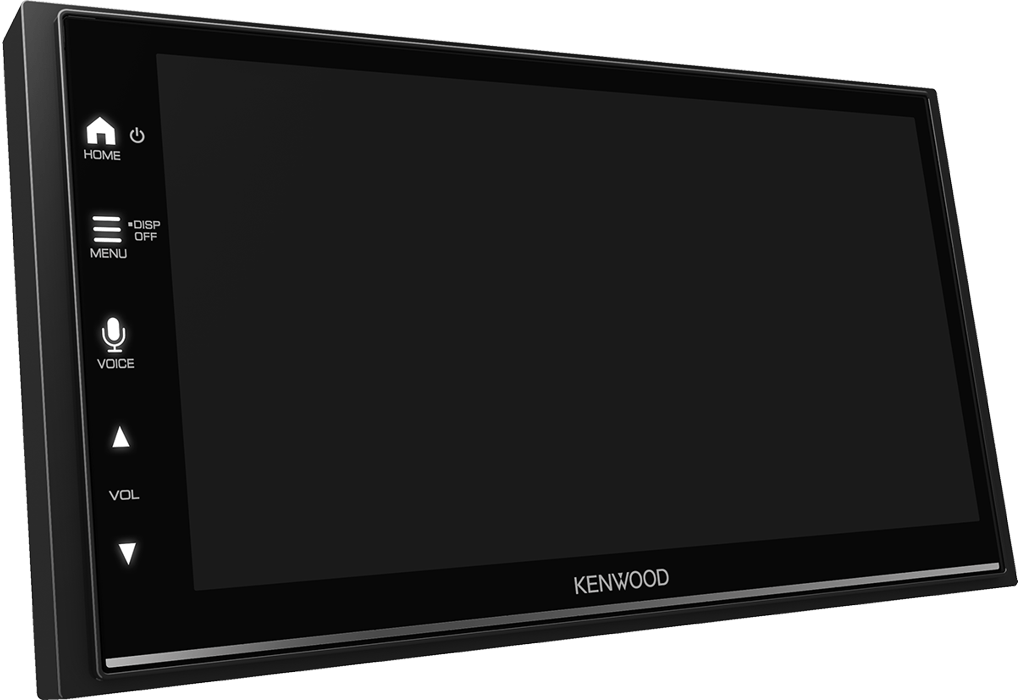

- 6.8" WVGA Capacitive Touch Screen Display
- Fixed Front with LED backlight
- Brightness, color, and contrast adjustment options
- Adjustable dimmer for the display (auto/on/off)
- Electronically adjustable viewing angle from 0 - 20 degrees

Tuner Features
- Integrated DAB+ tuner for crystal-clear playback
- FM and DAB+ tuner with priority for DAB+ reception
- FM and AM tuner reception (MW medium wave and LW long wave)
- Automatically store the strongest FM stations (SSM)
- FM frequency range: 87.5 - 108.0MHz (in 50kHz steps)
- AM frequency range: MW 531 - 1,611kHz (in 9 kHz steps)
- AM frequency range: LW 153 - 279 kHz (in 9 kHz steps)
- Number of preset stations: 30 (15x FM | 15x AM)
- RDS Radio Data System with radio text via (FM band)

USB, Smartphone Features
- 1x USB-A connection on the back at 5V, 1.5A
- Support for fast charging of the smartphone
- 24-bit DAC D/A digital/analog converter
- Playback of FLAC, MP3, WMA, WAV and AAC
- FLAC audio playback at 24 Bit @192 Khz
- Playback of MPEG1, MPEG2, MPEG4, H.264 and JPEG
- USB and WiFi support for Apple CarPlay®
- USB and WiFi support for androidauto™
- Support for Android mirroring via USB
- Voice control via Google or Siri voice assistant

Audio Features

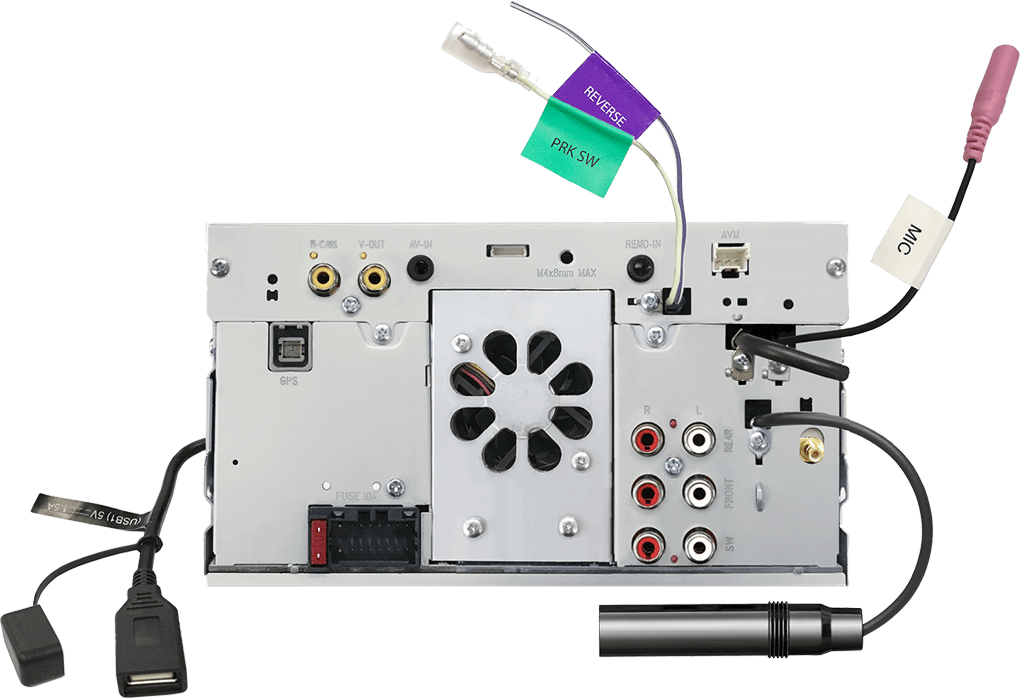

- 3 pairs of RCA audio outputs at 2.5 Volts
- Built-in 3 Way X' Over Network and DSP
- X' Over Netwerk --> Tweeter | Mid-range | Woofer
- 13 bands parametric Equalizer with 8 presets
- Built-in Low Pass and High Pass Filters
- Sound lift, Sound Response and Space Enhancement
- Balance, Fader and Loudness settings
- Loudness control (off…low…high…) and Drive EQ

Bluetooth Properties
- Integrated Bluetooth technology (version 4.2)
- Safe hands-free calling (HFP protocol, version 1.8)
- Active connection for 2 telephones simultaneously (private | business)
- Phone book synchronization via PBAP protocol (2)
- Voice control for phone book via phone (2)
- Support for Bluetooth® audio streaming (A2DP)
- Support for phone control of music (AVRCP)
- Noice Reduction, Echo Canceling and Gain Adjust
- Includes external microphone (wired) for calling

Video Properties
- 1 x RCA Video input on the rear
- 1 x RCA video output for rear screens
- Available AV-out Sources: AV-IN and USB

Camera Input Properties
- 1 x RCA input for reversing camera
- 1 x 3.5mm mini-jack A/V input (switchable)
- Rear view camera parking guide lines for rear camera

Other Features
- Easy installation due to an installation depth of 7.5CM!
- Full-color GUI and adjustable key illumination
- Backup for channel memory and audio settings
- Connection for steering wheel interface (available separately, car-specific)

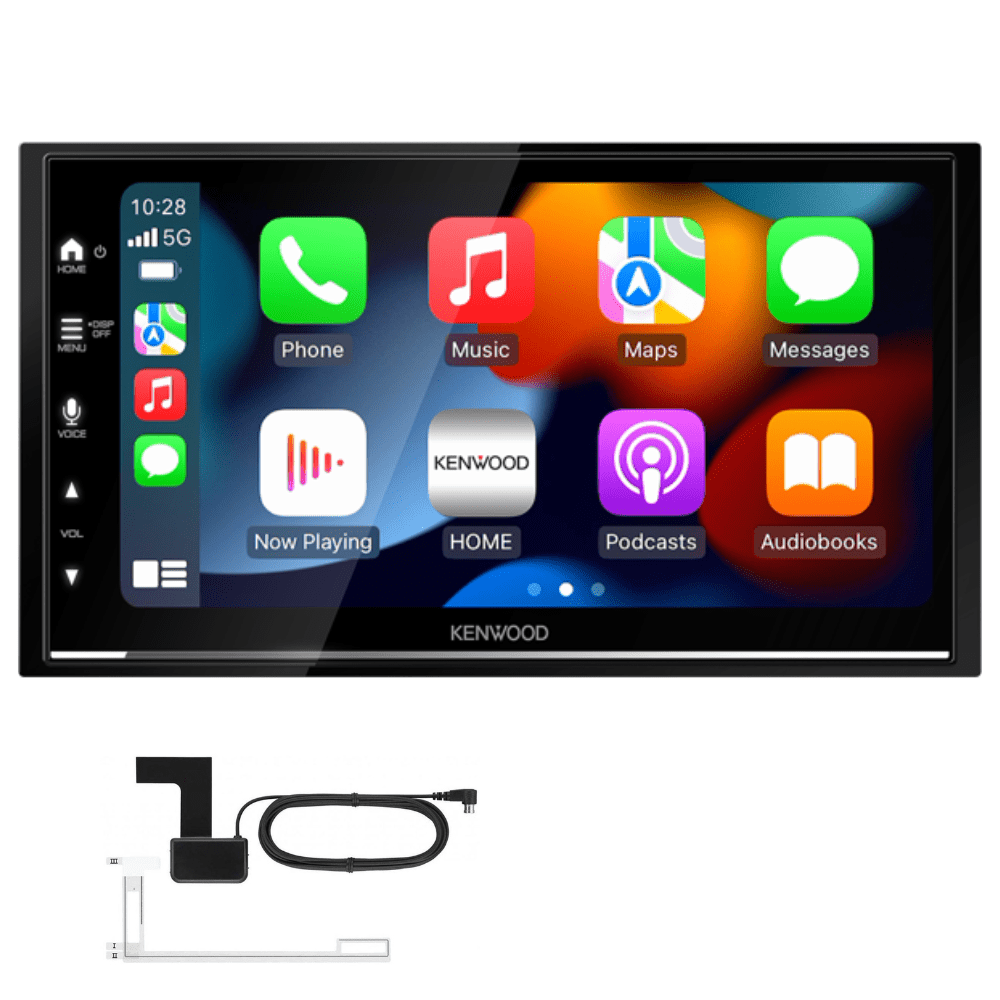

- Universal SMB connection for a DAB+ antenna
- DAB+ antenna power switchable (on or off)
